LeakVue2 - Step 1 - Setting up LeakVue2

LeakVue2 - Step 2 - Setting Up  Cross Tube

LeakVue2 - Step 3 - Connect to the App

LeakVue2 - Step 4 - Enter the dimensions

LeakVue2 - Step 5 - Get The Test Results

https://d3ev5earl6dvd0.cloudfront.net/public-media/videos/006/422/006422/video_gLlWQaa.mp4

When setting it up at the edge of the pool, you want to position it so that the red line is at the water level.

Once it's at that water level, you want to tighten the screws.

So the leak Vue two is firmly being held in place.

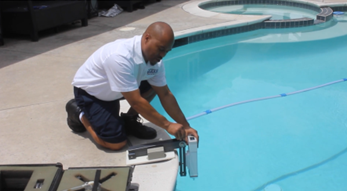

The next step that you want to do before aligning the leak vue two is you want to get the cross tube out of the box and you wanna put it into the water, let it go all the way down to the bottom.

Once you have the cross tube hose into the water, you want to shake it around underwater to get all the air out like this. Once you have all the air out, you can connect it to the bottom of the tube

Now it's time to connect the leak vue two to the app.

You want to push the power button on the left hand side of the leak vue two. And then you wanna pull up your app.

Once you pull up your app, you want to scan for the device.

When connecting the device to the app, you want to turn the unit on, you want to go and scan for the unit.

Once it picks up the unit, you'll see that it will say leave view two on the app.

Once you get to the sensor detail screen, you want to go to a line.

The align part is to make sure that the leak vue two is level and so you can have proper testing and you wanna use the fine adjustment screw to adjust that in case you need to raise it up or raise it down so that it can be aligned. Once it's aligned in the middle with the peak, then you're ready for testing.

Once the leak vue two is aligned, you want to put in the measurements for the pool or spa that you will be testing by doing that. You wanna go to test. Once you put a test, it's gonna give you options to put in length versus the width of the pool that you're testing. Once the leak vue two is aligned, you want to go to test and you wanna put in the measurements for the pool spa that you will be testing. So you want to go to that screen and you're gonna see pool width, pool length and duration of the test. You want to put the duration of the test of how long did you want? Testing? For example, this pool is 31 ft by 13 ft.

You wanna put that into the coordinates, you wanna push the duration, that's 15 minutes you wanna push

Once you do this, the test is started.


Once the testing is complete on the app, it will notify you that testing is finished. Once testing is finished, you want to go to the home screen, you wanna push history and then you'll get a list of all the tests that's been performed. The top one will be the test that you just currently finished.


Once the full test is complete and you have the results, you can screenshot those results and add that to your report.
